Following on from the last instalment of BB, we move onto fixing the brake gear.

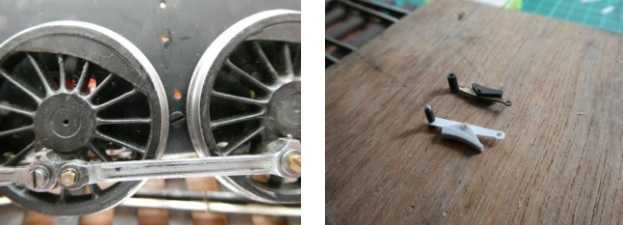

There’s not a lot of room between the wheels. Enough to short out any metal brake shoes and hangers! Next the old metal cross members, hangers and brake shoes.

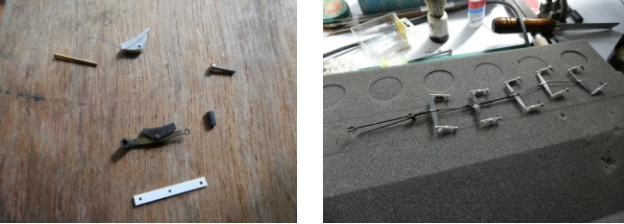

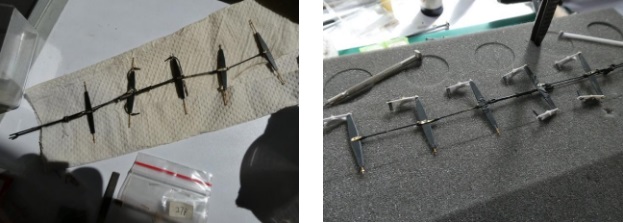

Left: Dave kept the original brass rodding and replaced the cross members with 40 thou plasticard. I drilled and tapped the end edges 16 BA for the bottom end of the hangers. Right: Components of the assembly.

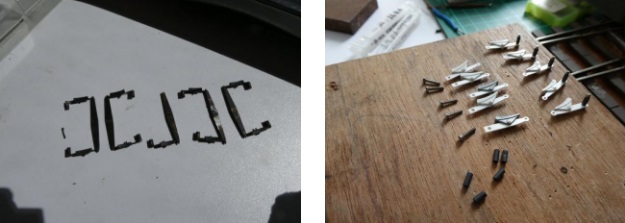

The completed assembly and the full set of replacements.

Assembling the hangers on the cross members, and the complete braking assembly ready for installation on BB.

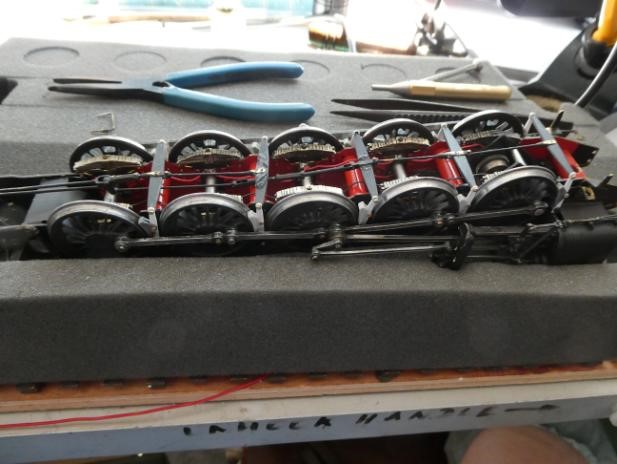

All installed on BB.

The finished loco running smoothly on on The Summit.
