Hobson’s Brewery is a railway layout in 7mm scale finescale 0 gauge.  Designed and started by Bob Alderman, as he continues his battle with MND it is being completed by proxy (i.e. he tells the actual builders what needs doing).   What will be delivered is a finescale model railway that Bob will be able to fully operate using a joystick.    In this context up/down on the joystick will select the mode and left/right will then achieve the required movement.   The mode is indicated by an array of LEDs.  The available modes are Loco, Capstan, Turntable, Point, Uncouplers and Traverser.  More details of the layout and its control system will feature in an upcoming  Railway Modeller magazine and this is only intended to be something of a taster.

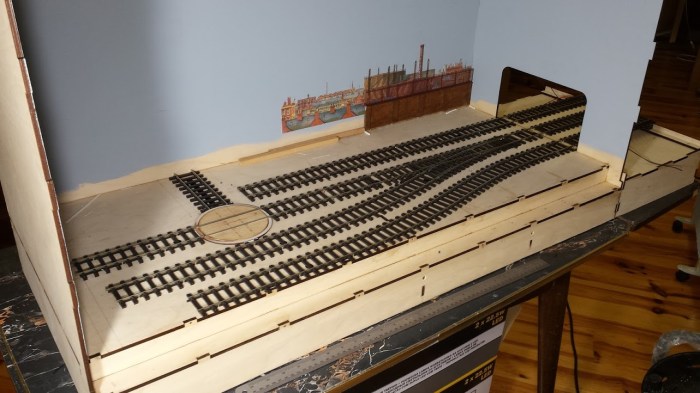

Early days with showing the laser cut cabinet with the traverser off scene to the right, the single point, wagon turntable to the left and what I’ve termed the capstan behind it to draw wagons off the turntable towards the brewery.

HB_20190216_172846

View from the traverser prior to ballasting.

HB_20190223_183414

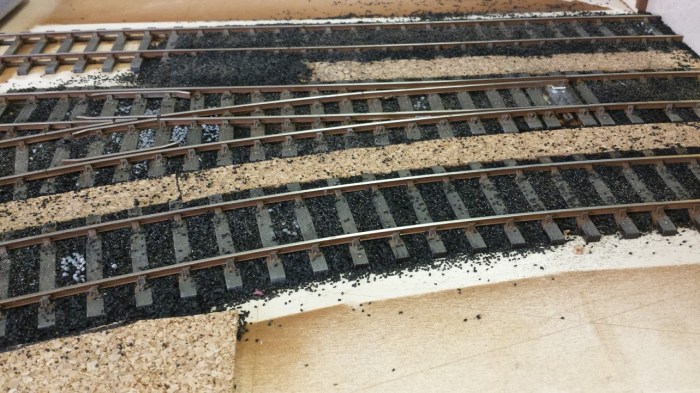

Early days with cinder ballasting underway.

HB_20190330_174540

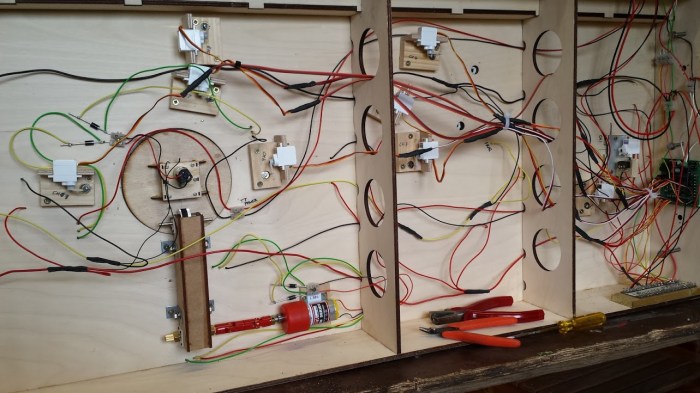

Just a few wires with the capstan drive lower left – the white units are the uncouplers.

HB_20190618_112159

Beer wagon converted from a Cattle Van in front of the completed laser cut brewery building.HB_20190223_183335



A selection of scenes from the finished model.

This slideshow requires JavaScript.



Traverser in Operation.

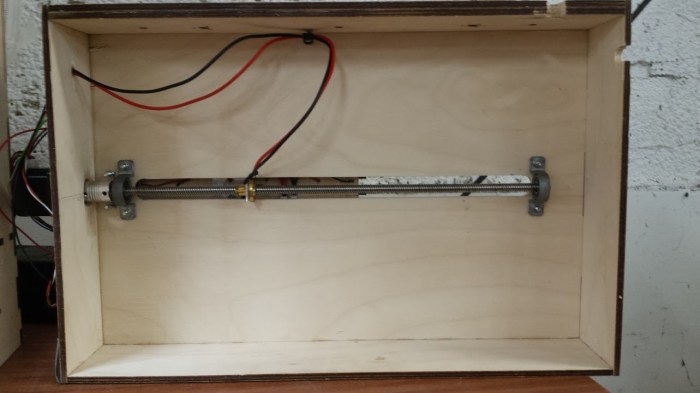

Traverser mechanism.

HB_20190731_154226

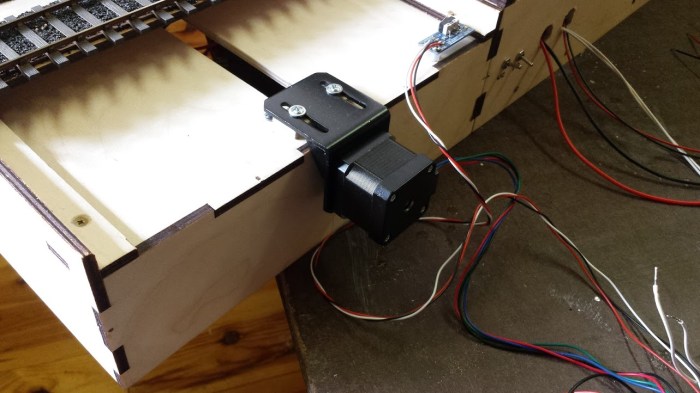

Traverser Stepper Motor.

HB_20190523_181906

And the traverser control system.



Turntable in Operation

Again a simple left and right control – note the adjustable micro switch operating mechanisms.

A wagon being drawn off and then onto the capstan.

And the mechanism not concealed by a wagon.

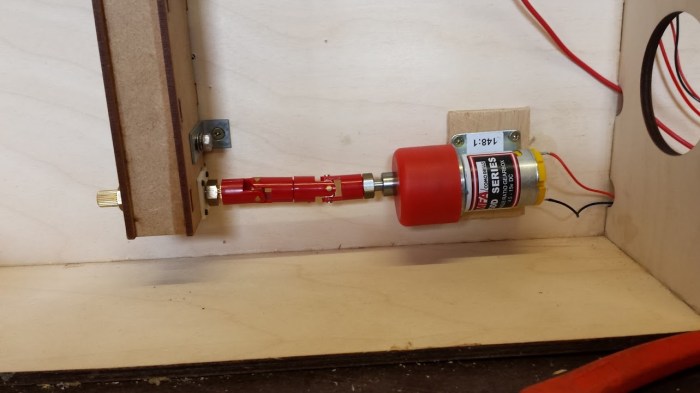

The drive mechanism for the capstan.HB_20190615_140252

Setting the drawbar dropper at the correct height.HB_20190606_125008

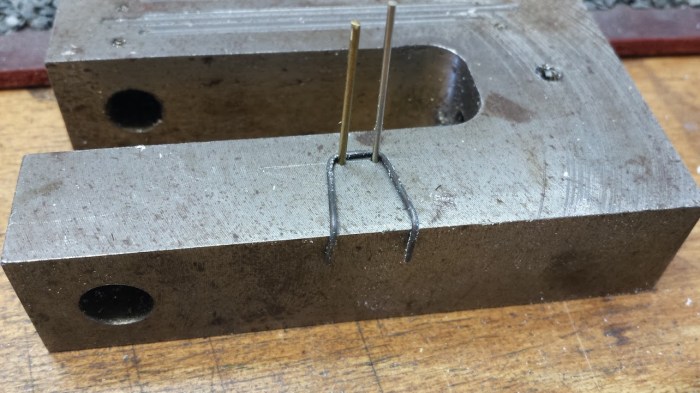

Forming the drawbar dropper.HB_20190606_125000

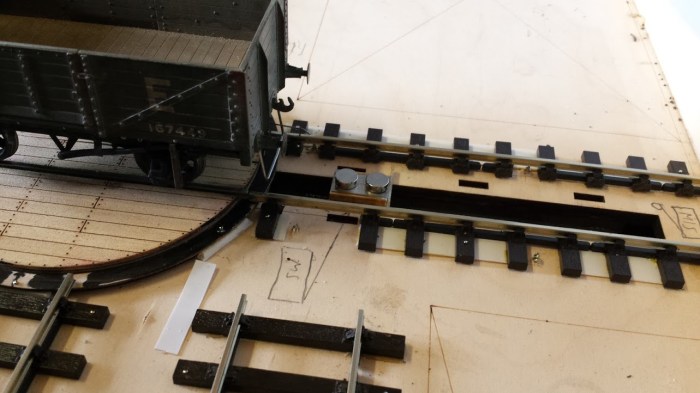

Drawbar dropper on wagon with drawbar magnets visible.HB_20190615_135854

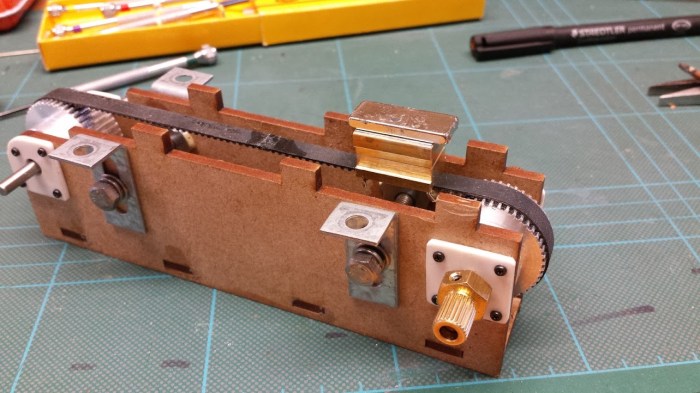

Amazing what can be achieved with laser cut MDF.HB_20190612_082637

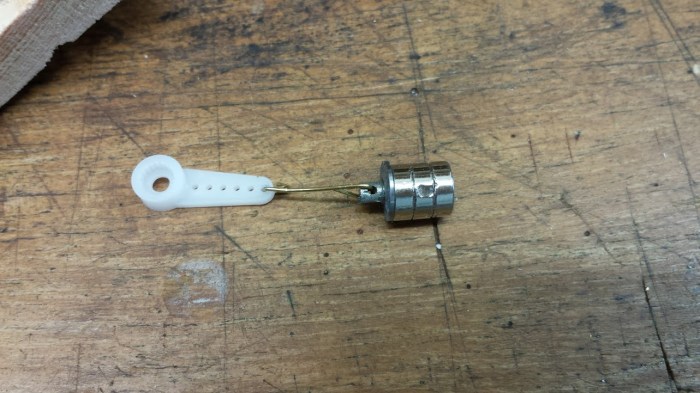

One of the uncoupler magnets with servo arm.HB_20190414_180618

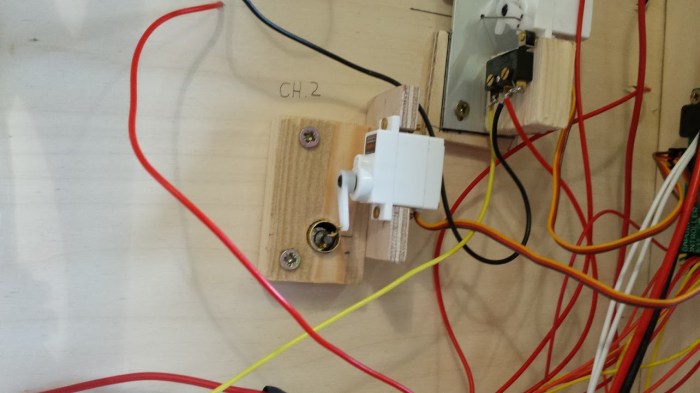

And mounted under the baseboard.HB_20190414_154007



Control system for the locomotive.  This method gives both speed and direction control from simple ‘left’ and ‘right’ actions on the joy stick.

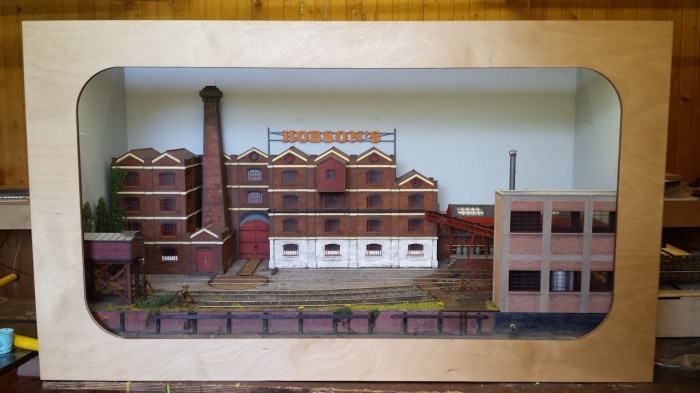

And to finish an Overview of the visually complete layout.HB_20190706_120123

As at Early September the software has been written and the hardware is largely complete, but requires packaging up.
